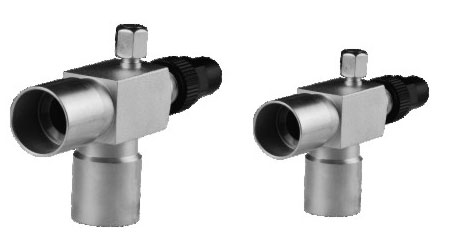

Receiver valve (Fine steel cladding)

Brief introduction

Installed in the commercial air conditioning system with valve handle sell-closing design,controlling and switching the refrigerant in the refrigeration system

Character

·Complete in size of connection

·Applicable for all refrigerant and relevant oil

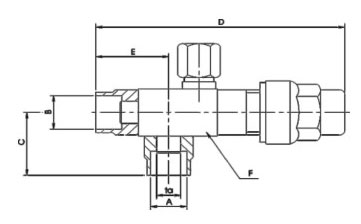

Structural Representation

Technical data

型号 Type	接口 (AXB) Conn&clioct ODF(in)	基体尺寸 F'F(mm)	总长(D) Total length(mm)	尺寸 Size（ mm ）	尺寸（c) Size- (mm)	订货号 Ordder number
LAG-02	1/4	20X20	98	26	25	200-001
LAG-03	3/8	20X20	97	25	24	200-002
LAG-04	1/2	20X20	102	30	29	200-003
LAG-05S	5/8	22X22	111.5	35	33.5	200-004
LAG-05	5/8	30X30	130.5	40	3e	200-005
LAG-06S	3/4	22X22	111.5	35	33.5	200-006
LAG-06	3/4	30X30	131	40	38	200-007
LAG-07	7/8	30X30	131	40	38	200.8
LAG-09S	1-1/8	30X30	146	55	43	200-009
LAG-09	1-1/8	36X36	174	55	50	200-010
LAG-11	1-3/8	36X36	175	56	51	200-011
LAG-13	1-5/8	36X36	180	61	56	200-012
LAG-17	2-1/8	50X50	201	78.5	74.5	200-013
