Coupling hose


Brief introduction
New type of material used in the air conditioner and refrigeration system,with high intensity and flexility,especially applicable for requirement of shocking long distance transportation and running during shocking of cooling unit.
Character:
•Applicable medium: R12、R22、R134a、R407c、R404a、R410a and relevant refrigerant
•Various connection types
•Quake-proof、pressure-proof、flexible、not influence by the space
•Maximum working pressure 200Bar
•Temoerature:-40℃--120℃
Technical data

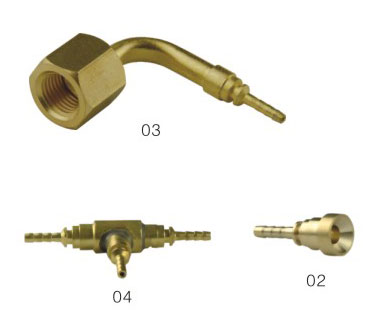

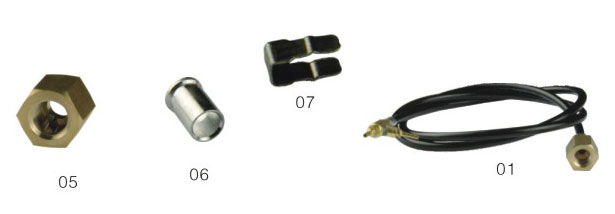

型号 Type | 名称 Model | 规格 Specifications | 说明 Discripition | 订货号 Order nuinber |
LA-01 | 软管 | 2.5*57 | 代替连接管路用毛细管,抗震.耐压 | 400-001 |
LA-02 | 直通 | 1/4 | 与软菅锥形连接 | 400-002 |
LA-03 | 90度弯接头 | 1/4 | 方便连接形式 | 400-003 |
LA-04 | 三通 | 1/4 | 多路连接 | 400-004 |
LA-05 | 螺母 | 1/4 | 连接压力表、回油口、针阀等件 | 400-005 |
LA-06 | 铝套 | 8 | 压紧软管及各种接头之紧固件 | 400-006 |
LA-07 | 项针 | 起开、关部分回路系统 | 400-007 | |
LA-08 | 压线钳 | 压紧固件用工具 | 400-008 |
