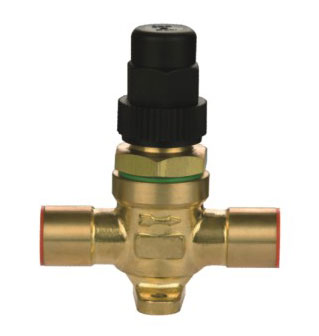

Capping valve

Brief introduction

Used in the automobile air conditioner and other commercial refrigeration system,which adopt sell-closing design of valve handle,which enable it to be installed in any place of the refrigeration system where the direction of the refrigerant flow need to be changed.

Character：

•Connection:SAE and ODF

•Applicable for all the fluoride refrigerant

结构示意图

Technical data

型号 Type	接口Connection(in)		总长L（mm） Total Length	总高H1（mm） Total height	流量系数 Kv	订货号 Order number
型号 Type	SAE	ODS	总长L（mm） Total Length	总高H1（mm） Total height	流量系数 Kv	订货号 Order number
LA-6410/2	1/4		68	85.5	0.4	201-301
LA-6420/2		1/4	57	85.5	0.4	201-302
LA-6410/3	3/8		74	85.5	1.0	201-303
LA-6420/3		3/8	61	85.5	1.0	201-304
LA-6410/4	1/2		78	85.5	1.45	201-305
LA-6420/4		1/2	70	85.5	1.45	201-306
LA-6410/5	5/8		78	85.5	1.7	201-307
LA-6420/5		5/8	71	85.5	1.7	201-308
LA-6410/6	3/4		98	113	3.5	201-309
LA-6420/6		3/4	92	113	3.5	201-310
LA-6420/7		7/8	94	113	3.5	201-311
