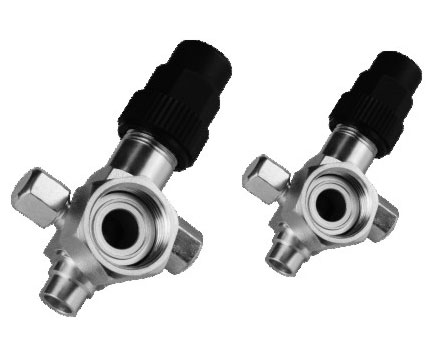

Rotational lock valve ODS series

Brief introduction

Used at the rotary joint of the refrigeration system, switch off and on the refrigerant.

Character:

·Applicable for suction port and exhaust port of the compressor such as Copeland 、Maneurop etc

·Applicable for the liquid receiver with valve

·All series of ODF type

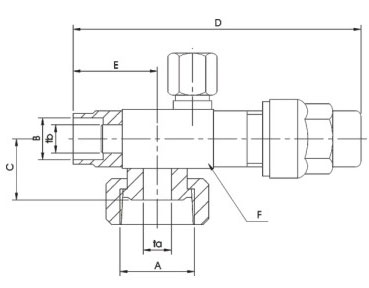

Structural Representation

Technical data

型号 Type	阀基体F (mm)	螺旋口 (A) Conrection	焊接口(B) ODF ( in)	订货号 Order number
LV-02	20	3/4" -16UNF	1/4	200-101
LV-03 (V01)	20	1" -14UNS	3/8	200-102
LV-04 (V06)	20	1" -14UNS	1/2	200-103
LV-05 (V09)	30	1-1/4"-12UNF	5/8	200-104
LV-06 (V04)	30	1-1/4" -12UNF	3/4	200-105
LV-07 (V05)	30	1-1/4"-12UNF	7/8	200-106
LV-07S (V07)	30	1-3/4"-12UNF	7/8	200-107
LV-09 (V02)	36	1-3/4"-12UNF	1-1/8	200-108
LV-11	36	1-3/4" -12UN	1-3/8	200-109
LV-13	50	2-1/4"-12UN	1-5/8	200-110
LV-17	50	2-1/4" -12UN	2-1/8	200-111
