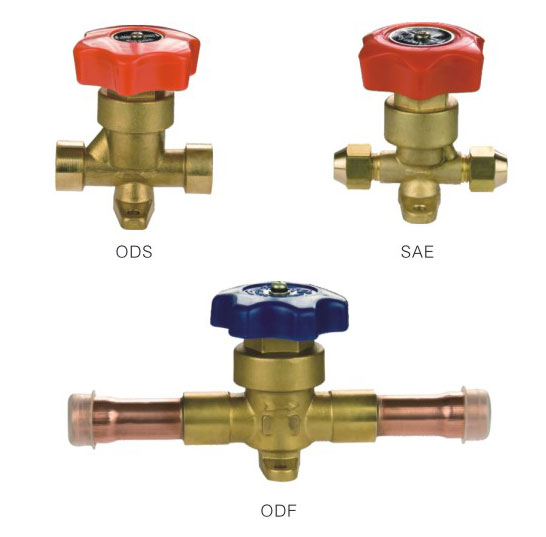

Hand valve

Brief introduction
Applied as shutoff component in the liquid line,suction line and heat gas line in the refrigeration equipment.
Technical data
型号 Type |
接口Connection(in) | 流量 Kv |
工作压力 Bar |
订货号 Order number | ||
SAE | ODS | 加长型ODF | ||||
LA-2A | 1/4 | 0.28 | 28 | 201-201 | ||
LA-2S | 1/4 | 0.28 | 201-202 | |||
LA-2SS | 1/4 | 0.28 | 201-203 | |||
LA-3A | 3/8 | 0.3 | 201-204 | |||
LA-3S | 3/8 | 0.3 | 201-205 | |||
LA-3SS | 3/8 | 0.3 | 201-206 | |||
LA-4A | 1/2 | 1.3 | 201-207 | |||
LA-4S | 1/2 | 1.3 | 201-208 | |||
LA-4SS | 1/2 | 1.3 | 201-209 | |||
LA-5A | 5/8 | 1.8 | 201-210 | |||
LA-5S | 5/8 | 1.8 | 201-211 | |||
LA-5SS | 5/8 | 1.8 | 201-212 | |||
LA-6A | 3/4 | 3.65 | 201-213 | |||
LA-6S | 3/4 | 3.65 | 201-214 | |||
LA-6SS | 3/4 | 3.65 | 201-215 | |||
LA-7S | 7/8 | 3.65 | 201-216 | |||
LA-7SS | 7/8 | 3.65 | 201-217 |
