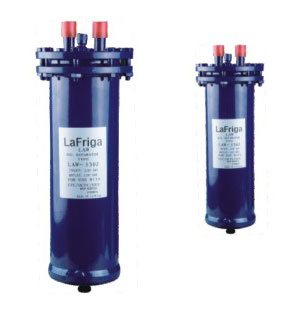

Oil separator (Foldable type)

Brief introduction

With the ability of oil separating and returning,as to improve the effective operation of the air conditioner or refrigeration system,demountale oil separator easy for system installation and maintenance.

结构示意图

Technical data

型号 Type	接口尺寸(in) Connection ODF	管径(in） Size A	总长(in) Total length B	中心距(in) C	制冷量（Kw)refrigeration capacity						订货号 Order number
					R22		R134A		R404
					-40℃	5℃	-40℃	5℃	-40℃	5℃
LAW-5301	1/2	4	10.8	1.89	5.3	7.0	3.2	6.2	5.3	7.0	900-401
LAW-5302	5/8	4	14.7	1.89	15.8	19.3	11.4	15.8	14.4	19.3	900-402
LAW-5303	7/8	4	18.03	1.89	24.6	28.1	16.7	22.4	22.8	28.8	900-403
LAW-5304	1-1/8	4	19.45	1.89	31.7	37.0	22.4	29.9	30.0	37.4	900-404
LAW-5305	1-3/8	4	20.63	1.89	40.4	47.5	28.1	40.4	36.7	49.0	900-405
LAW-6303	1-3/8	6	15.45	2.76	45.2	49.2	33.4	48.4	41.0	50.8	900-406
LAW-6304	1-5/8	6	18.69	2.76	56.3	63.3	41.3	56.3	51.0	65.1	900-407
LAW-6305	2-1/8	6	21.25	2.76	91.4	105.5	63.3	88.8	88.5	108.6	900-408
