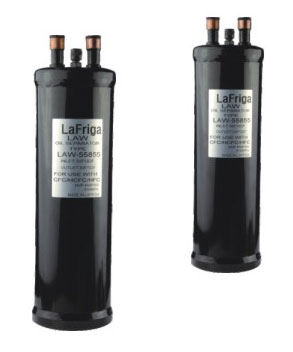

With the ability of oil separating and returning,as to improve the effective operation of the air conditioner or refrigeration system.

•Floating ball type oil separating and returning

•Before installing oil separator,it is necessary to initial and press the same refrigerant in the crankcase

型号 Type	接口尺寸(in) Connection ODF	管径(in） Size A	总长(in) Total length B	中心距(in) C	制冷量（Kw)refrigeration capacity						订货号 Order number
					R22		R134A		R404
					-40℃	5℃	-40℃	5℃	-40℃	5℃
LAW-55824	1/2	4	10.8	1 .89	5.3	7.0	3.2	6.2	5.3	7-0	900-301
LAW-55855	5/8	4	14.7	1.89	15.8	19.3	11.4	15.8	14.4	19.3	900-302
LAW-55877	7/8	4	18.03	1.89	24.6	28.11	16.7	22 4	22.8	28.8	900-303
LAW-55869	1-1/8	4	19.45	1.89	31.7	37.0	22.4	29.9	30.0	37.4	900-304
LAW-559011	1-3/8	4	20.63	1.89	40.4	47.5	28.1	40.4	36.7	49.0	900-305
LAW-569011	1-3/8	6	15.45	2.7&	45.2	49.2	33.4	48.4	41.0	50.8	900-306
LAW-569213	1-5/8	6	18.69	2.76	56.3	63.3	41.3	56.3	51.0	65.1	900-307
LAW-569417	2-1/8	6	21.25	2.76	91.4	105.5	63.3	88.8	88.5	108.6	900-308
