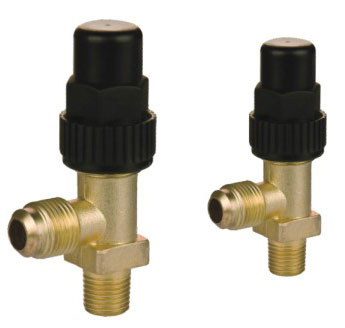

Receiver valve (copper valve boby)

Brief introduction

Used in the receiver,as to turn on or off.

Character:

·Connection:NPF and SAE

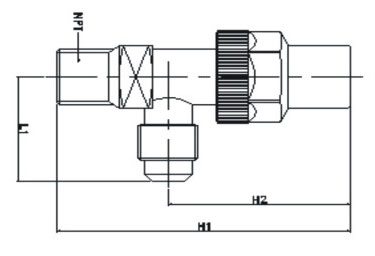

Structural Representation ;

Technical data

Type	connection(in)		Size（mm）		Order Number
Type	NPT	SAE	L1	H2	Order Number
LAT-6110/22	1/4	1/4	25	49.5	200-701
LAT-6110/23	1/4	3/8	28	49.5	200-702
LAT-6110/32	3/8	1/4	25	49	200-703
LAT-6110/33	3/8	3/8	28	48.5	200-704
LAT-6110/34	3/8	1/2	34	56.5	200-705
LAT-6110/43	1/2	3/8	32	56	200-706
LAT-6110/44	1/2	1/2	34	56.5	200-707
LAT-6110/45	1/2	5/8	36	56.5	200-708
LAT-6110/65	3/4	5/8	42	85	200-709
LAT-6110/66	3/4	3/4	46	85	200-710
