Plunger type check valve

Brief introduction

Can be used in the commercial refrigeration and air conditioning system Any place where the flow need to be changed Applied to large refrigeration system.

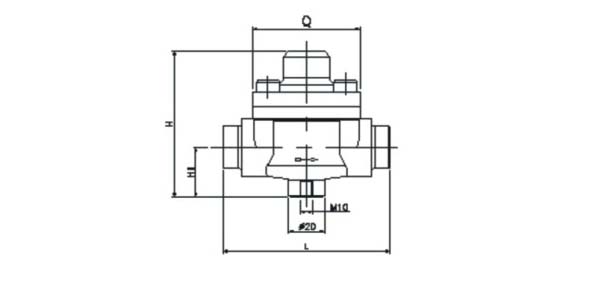

Structural Representation

Technical data

型号 Type	接口尺寸(in) Connection	总长L (mm) Total length	总高H ( mm ) Total height	流量 Kv	流体制冷量 Kw	订货号 Order number
LA-3120/7	7/8	100	84.5	6.6	119	800-401
LA-3120/9	1-1/8	100	84.5	8.8	158	800-402
LA-3120/11	1-3/8	118	101.5	15.2	274	800-403
LA-3120/13	1-5/8	141	125.5	25	450	800-404
LA-3120/17	2-1/8	173	142	40	720	800-405

Character:

Prevent the reverse flow of refrigerant

Vibration absorbing plunger inside, which make it able to be installed in the vent pipe line of compressor

Working temperature: -20℃—120℃

Working pressure: 3.5Mpa

The copper tube can be installed at the connections at both ends
