Ball type check valve

Brief introduction

Installed in the vent pipe line of the compressor.Straight design around the steel ball, make big flow come from the valve with small diameter, all-metal design permit the high temperature during installation and operation.

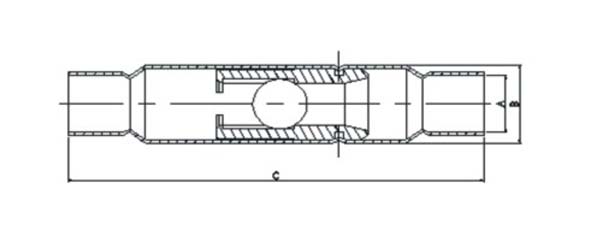

Structural Representation

Technical data

型号 Type	接口尺寸A(in) Connection	阀径B (in) Size	总长C (in) Total length	冷量 Rt	泄漏率Leak 60psi	虽大工作压力 Bar	极限压力 Bar	订货号 Order number
LA-6	3/8	1/2	3.75	5.0	0.009	44	220	800-101
LA-8	1/2	5/8	3.75	9.0	0.009	44	220	800-102
LA-10	5/8	7/8	4.5	17.0	0.009	44	220	800-103
LA-12	3/4	1-1/8	4.5	32.0	0.014	38.6	193	800-104
LA-14	7/8	1-1/8	4.5	35.0	0.014	35.6	138	800-105
LA-18	1-1/8	1-3/8	5.0	92.0	0.02	32.5	138	800-106

Character:

Adopt the closed type, and is used with gas, prevent the reverse flow of refrigerant

Sealing design、nearly 0 reverse flow

Working temperature : -30°C—150°C

Maximum working pressure 3.5Mpa
