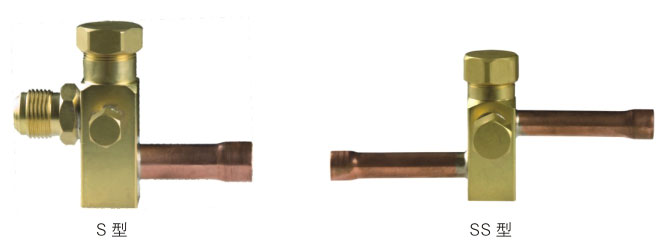

Bar stock service valve

Brief introduction

Suitable for split AC unit with medium of R22、R407C and R401A connecting the indoor-unit and outdoor-unit,turning valve stem deasil and fastening according to the specificed torque,open contrarily,Act as servicing valve in repair,using for vacuumizing and appending medium and other system of refrigeration circle.

Technical data

型号 type	接口尺寸（in） connection		匹配功率（HP）	适用制冷介质	最高使用压	订货号 Order Number
LSV-2S	1/4SAE	1/4ODF	1-3	R22 R407C R410A	4.15	201-501
LSV-3S	3/8SA6	3/8ODF	1-5			201-502
LSV-4S	1/2SAE	1/2ODF	1.5-10			201-503
LSV-5S	5/8SAE	5/8ODF	2-12			201-504
LSV-6S	3/4SAE	3/4ODF	5-12			201-505
LSV-3SS	3/8ODF	3/8ODF	1-5			201-506
LSV-4SS	1/2ODF	1/2ODF	1.5-10			201-507
LSV-5SS	5/8ODF	5/8ODF	2-12			201-508
LSV-6SS	3/4ODF	3/4ODF	5-12			201-509
LSV-7SS	7/8ODF	7/8ODF	6-16			201-510
