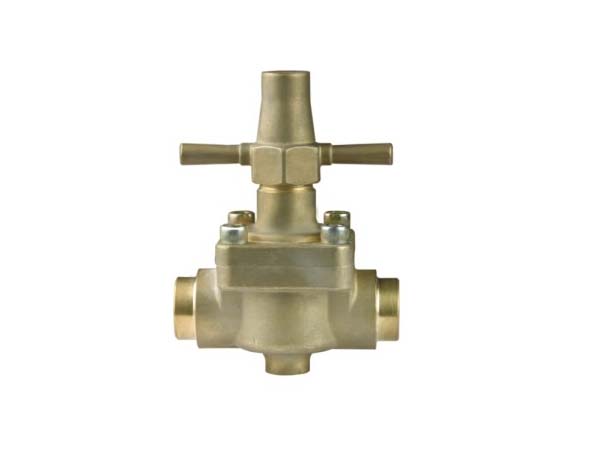

Manual globe valve

Brief introduction

Used in liquid line, suction line and heat gas line in the refrigeration system.

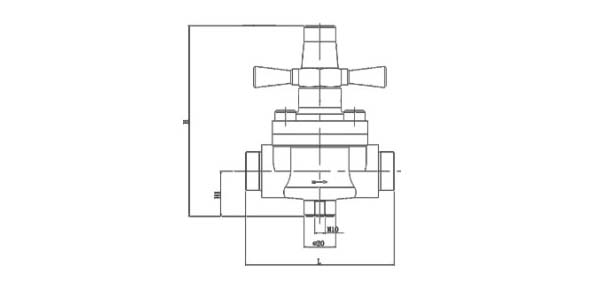

Structural Representation

Technical data

型号 Type	接口尺寸A(in) Connection	总长L Total length(mm)	总高 H Total height(mm)	流量Kv m³/h	压力 Bar	液体制冷量 Kw	介质温度 ℃	订货号 Order number
LA-6512/7	7/8	100	136	7.1	45	119	-30 -120	201-101
LA-6512/9	1-1/8	100	136	8.4		158		201-102
LA-6512/11	1-3/8	118	166	15		274		201-103
LA-6512/13	1-5/8	141	199	25		450		201-104
LA-6512/17	2-1/8	173	215	40		720		201-105

Character:

Applied with CFC、HCFC、HFC and relevant refrigerant

Maximum pressure fall range： -0.1—21 Bar

Medium temperature range： -30℃—l00℃
