Suction core

Brief introduction

Installed in the suction line of air conditioner or cooling system Filter contamination in the suction system. Conserve the cleanness of gas inhaled by compressor, Protect the compressor and extend the work life of compressor.

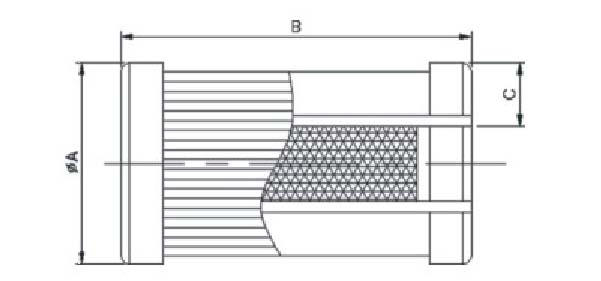

Structural Representation

Technical data

型号 Type	直径（A） Diameter (mm)	总长(B) Length(mm)	过滤面积 Filer Area （㎡）	压降 Pressure Drop ( Mpa ）	订货号 Order number
LX-48	95	140	1.5	0.013	500-101
LX-100	119	166	2.0	0.013	500-102

Character:

Applicable for the cooling system

Lower pressure fall

Better popularity, applicable for suction cartridge filter of all brands
