Prevent the impurity from entering the compressor as to extend the life of compressor.

•Strong filter capacity;impurity of 25—45 micron can be removed

•Small pressure fall during full flow

•Equipped with access port,with which the pressure fall can be detected as to replace in time

型号Type		接口尺寸 Connection size(i n)	过滤面积 Filer areaSquare Inches	外形尺寸imension(in)			订货号 Order number

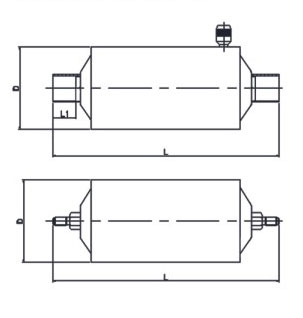

无检修阀 No examine valve	有检修阀 With examine valve	接口尺寸 Connection size(i n)	过滤面积 Filer areaSquare Inches	总长L Total length	焊接管深度L1 length of connections	充体直径DSize	订货号 Order number
LAF-283F		3/8 SAE	28	8.78		3.00	700-001
	LAF-285	5/8 ODF		8.35	0.63	3.00	700-002
	LAF-286	3/4 ODF		8.78	0.71	3.00	700-003
	LAF-287	7/8 ODF		8.94	0.75	3.00	700-004
	LAF-289	1-1/8 ODF		9.53	0.91	3.00	700-005
	LAF-489	1-1/8 ODF	48	12.4	0.91	3.00	700-006
LAF-28H13						3.00	700-007
	LAF-4811	1-3/8 ODF		13.1	0.98	3.00	700-008
	LAF-4813	1-5/8 ODF		13.4	1.1	3.00	700-009
