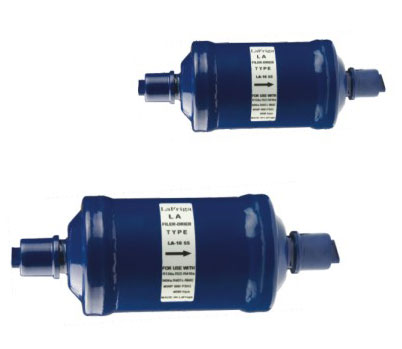

Filter drier one-way type (LA Graininess standard type)

Brief introduction

Installed in the liquid line of refrigeration system as to absorb the moisture in the system and medium and remove the impurity,protecting the system affectively.

Character:

•Strong ability to remove the solvent water and acid

•Molecular sieve is XH-9 graininess

•XH-9 type molecular sieve is applicable for refrigerant such as R22、R134a、R404a、R502、R407C

•Type of connection:SEA and ODF

•Soldered at the two end caps

•The type of molecular sieve need to be changed if the refrigerant medium is R410A

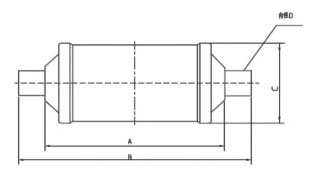

结构示意图

Technical data

型号 Type	连接接头 connections(in)	流体制冷量（Kw）Liquid flow capacity					外径C Size（in）	总长B Length（in）	订货号 Order Number
型号 Type	连接接头 connections(in)	R134a	R12	R22	R404A	R502	外径C Size（in）	总长B Length（in）	订货号 Order Number
LA-032	1/4 SAE	7.0	5.8	7.7	4.9	4.9	1.625	4.375	700-301
LA-032S	1/4 ODF	9.5	7.5	10.2	7.4	6.7	1.625	3.875	700-302
LA-033	3/8 SAE	10.5	8.8	11.6	7.7	7.4	1.625	4,69	700-303
LA-033S	3/8 ODF	10.5	8.8	11.6	7.7	7.4	1.6 之5	4.06	700-304
LA-052	1/4 SAE	9.0	7.4	9.8	6.5	6.3	2.64	4.81	700-305
LA-052S	1/4 ODF	13.3	10.9	14.4	9.6	9.4	2.64	4.44	700-306
LA-053	3/8 SAE	21.4	17.6	23.3	15.4	15.1	2.64	5.13	700-307
LA-053S	3/8 ODF	26.5	21.8	28.9	19.1	18.7	2.64	4.5	700-308
LA-062	1/4 SAE	8.6	7.0	9.3	6.2	6.0	2.64	5.63	700-309
LA-0S2S	1/4 ODF	13.7	11.3	14.6	9.9	9.7	2.64	5.25	700-310
LA-083	3/8 SAE	21.8	18.0	23.7	15.7	15.4	2.64	5.94	700-311
LA-083S	3/8 ODF	21A	22.5	29.8	19.8	19.3	2.64	5.31	700-312
LA-084	1/2 SAE	36.4	29.9	39.6	26.2	25.7	2.64	6.19	700-313
LA-064S	1/2 OOF	38.9	32.0	42.4	28.1	27.5	2.64	5.34	700-314
LA-163	3/8 SAE	22.2	18.3	24.2	16.1	15.7	2.64	6.58	700-315
LA-163S	3/8 ODF	31.7	26.0	34.4	22.9	22.4	2.64	6.25	700-316
LA-164	1/2 SAE	38.5	31.7	41.9	27.8	27.2	2.64	7.06	700-317
LA-164S	1/2 ODF	49.6	40.8	54.0	35.8	35.1	2.64	6.31	700-318
LA-165	5/8 SAE	50.5	41.5	54.9	36.4	35.7	2.64	7.5	700-319
LA-165S	5/8 OQF	67.2	55.3	73.1	48.5	47.5	2.64	6.56	700-$20
LA-167S	7/8 ODF	70.6	58.1	76.8	51.0	49.5	2.64	7.13	700-321
LA-304	1/2 SAE	43.6	35.9	47.5	31.5	38.4	3.15	9.88	700-322
LA-304S	1/2 ODF	54.3	44.7	59.1	39.2	38.4	3.15	9.06	700-323
LA-305	5/8 SAE	55.6	45.8	60.5	40.1	39.3	3.15	10.31	700-324
LA-305S	5/8 ODF	74.0	60.9	90.8	60.2	59.0	3.15	9.31	700-325
LA-306	3/4 SAE	59.4	52.2	71.0	50.2	43.5	3.15	10.31	700-326
LA-307S	7/8 ODF	83.4	68.6	90.8	60.2	59.0	3.15	9.88	700-327
LA-415	5/8 SAE	68.5	56.3	74.5	49.4	48.4	3.66	10.44	700-328
LA-415S	5/8 ODF	78.3	64.4	85.2	56.5	55.3	3.66	9.44	700-329
LA-417S	7/8 OQF	106.5	87.6	115.9	76.9	75.3	3.66	10	700-330
LA-419S	1-1/8 ODF	113.8	96.6	123.8	82.1	80.4	3.66	10.31	700-331
LA-759S	1-1/8 ODF	132.7	126 8	135.4	123.7	123	7.5	15.44	700-332
