油位控制器

产品简介
油位控制器以一个浮动的阀门控制压缩机曲轴箱内的油位,保护压缩机不缺油而能正常运行。
Brief introduction
It controls the oil level by a floating valve in the crankcase, prevent the compressor from oil starvation and guarantee its normal operation.

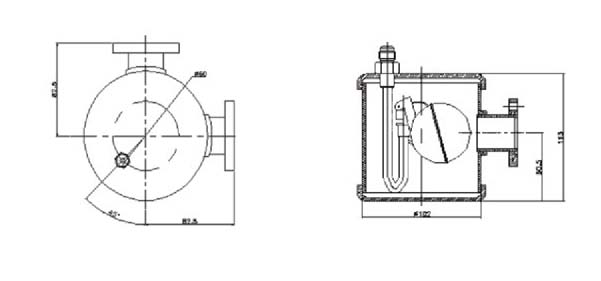

结构示意图

技术参数 Technical data
型号 Type |
油位 Oil level |
工作压力 Bar |
孔数 Number of Hole |
孔径 Size |
订货号 Order number |
LAOL-2-3 | 1/2 | 34 | 3 | 椭圆 | 900-101 |
LAOL-2-4 | 1/2 | 34 | 4 | 椭圆 | 900-102 |
工作条件:
通过浮球阀控制压缩机曲轴箱内的油位
保持压缩机内的油位在要求的水平线上
适用不同规格压缩机
产品用于并联机组系统
Working condition :
Control the oil level by the floating valve in the crankcase
Maintain the oil level in the compressor at the required standard
Applicable for compressor of all specifications
